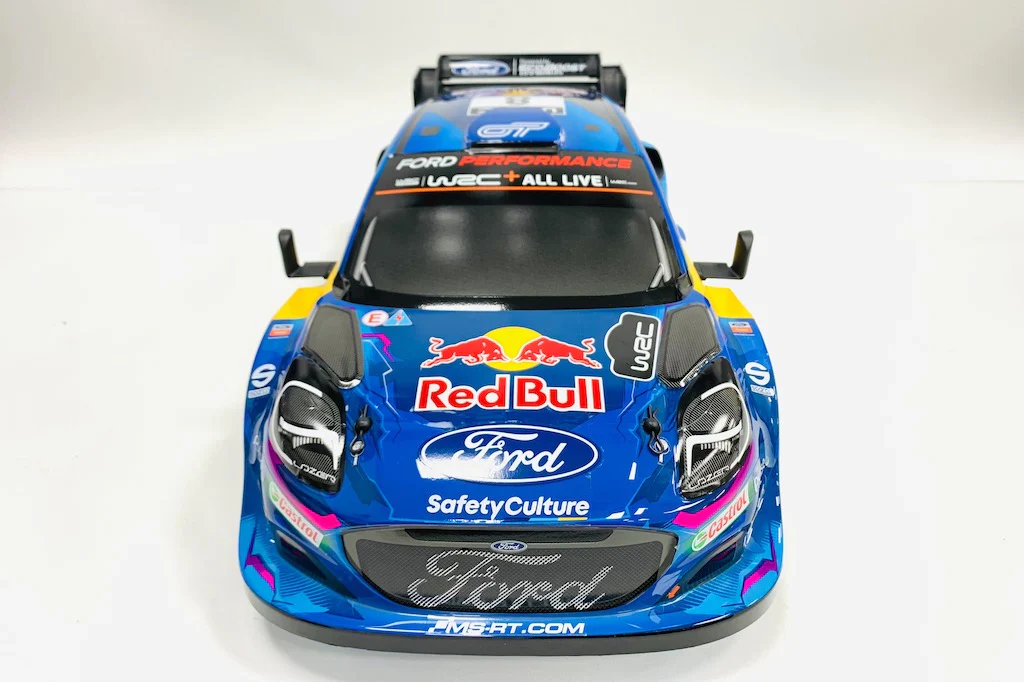

2023 M-SPORT FORD PUMA RALLY1.   1/8 RTR 4WD

**Battery and charger are not included**

**Recommend 2S - 3S Lipo Battery**

Item # 8999

Features:

* ESC

- 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).

- 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.

- Water-Proof and Dust-Proof for All Weather.

- Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.

- Built-In Capacitor Module.

- Automatic Throttle Range Calibration.

- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.

- Over-Heat Protection and Throttle Signal Loss Protection.

- 5 Levels of acceleration/punch.

- 9 Levels of maximum brake force.

 * Motor

- CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).

 * Servo

- 12Kg Metal Gear Servo (By Savox).

4.8V - 0.26 sec/60° 10.0 kg-cm.

6.0V - 0.23 sec/60° 12.0 kg-cm.

With 25T Horn Gear Spline.

 * Radio System

AMP-30 TX 3-Channel Transmitter.

Frequencies: 2.4GHz.

- Digital Trimming.

- Steering Dual-Rate (ST D/R) Adjustment.

- End Point Adjustment (EPA).

- Build in Failsafe.

Power Supply: 4 - AA Alkaline (Not Included).

 AMP30 RX 3-Channel Receiver.

    Frequency: 2.4GHz.

    Power Supply: DC 4.8 ~ 6.0V.

    Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

Body:

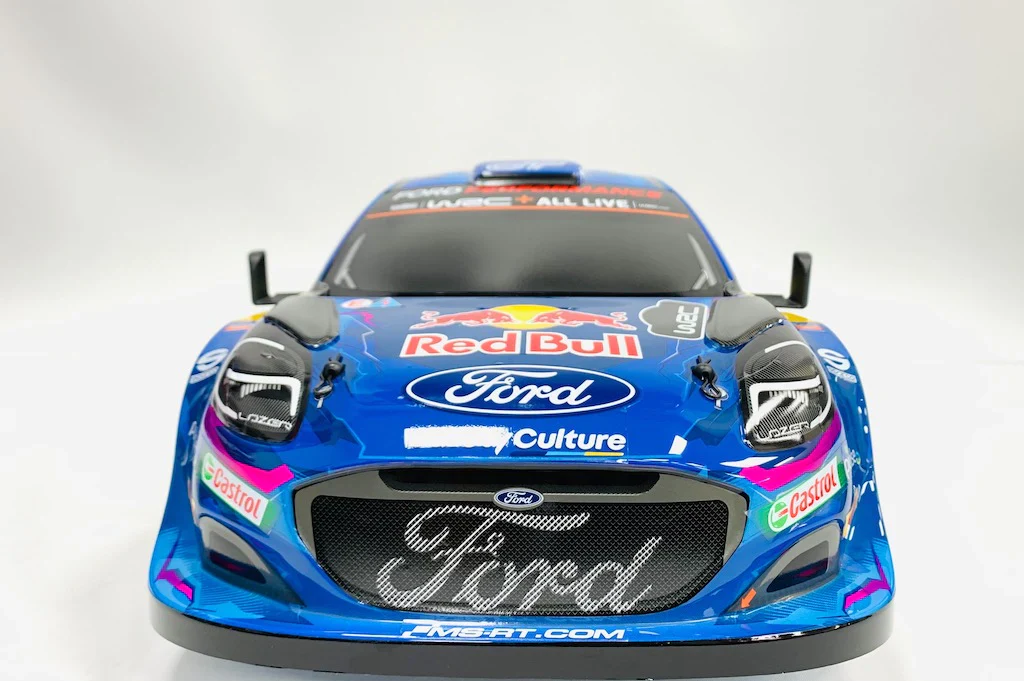

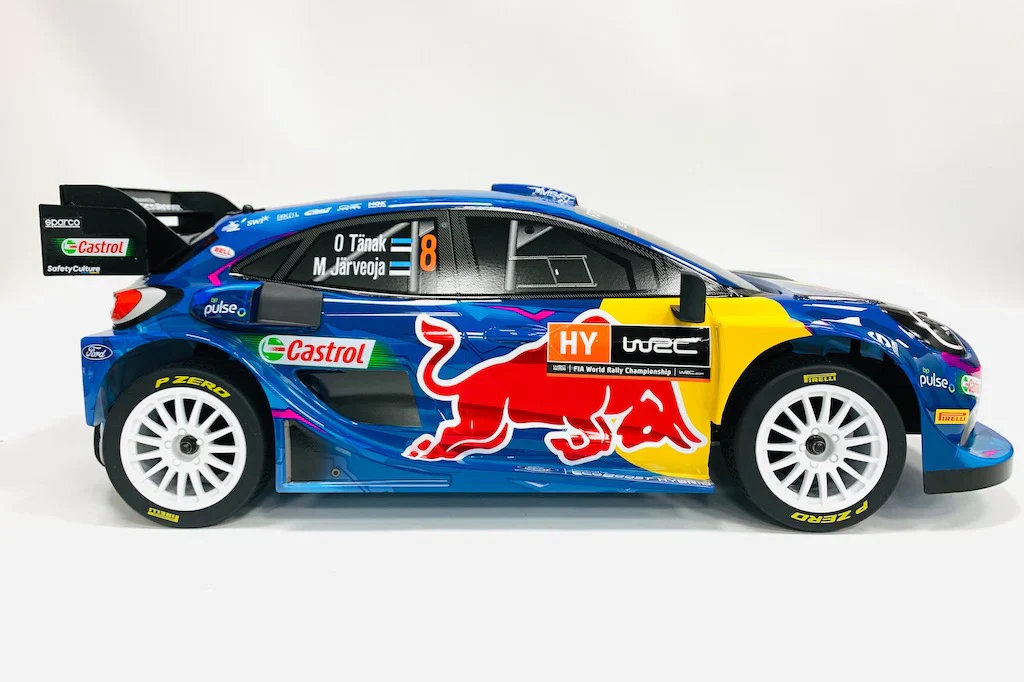

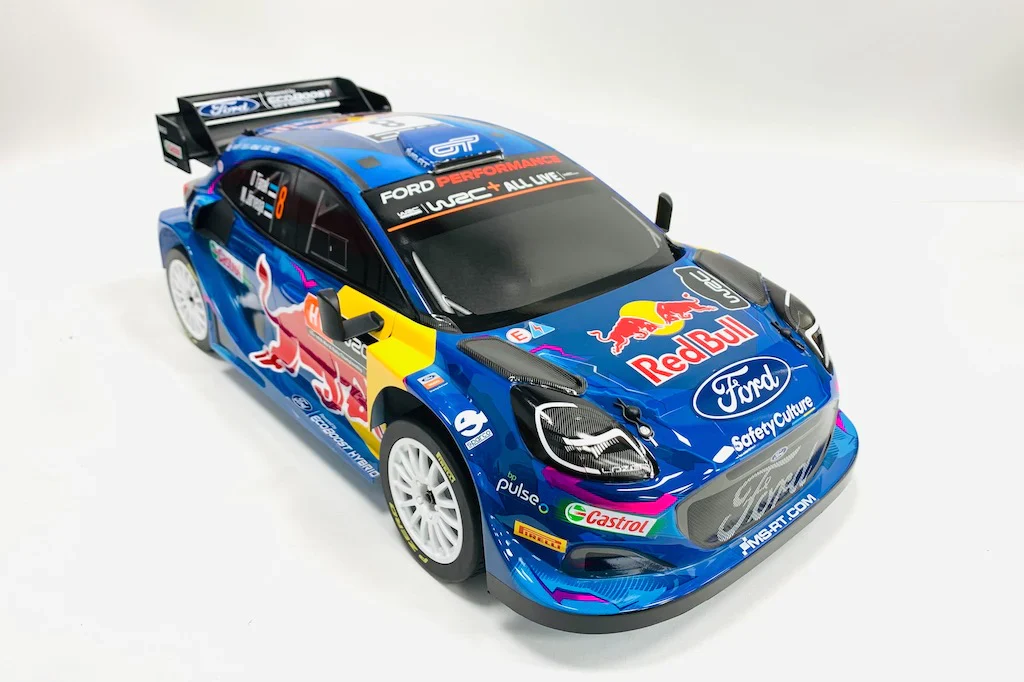

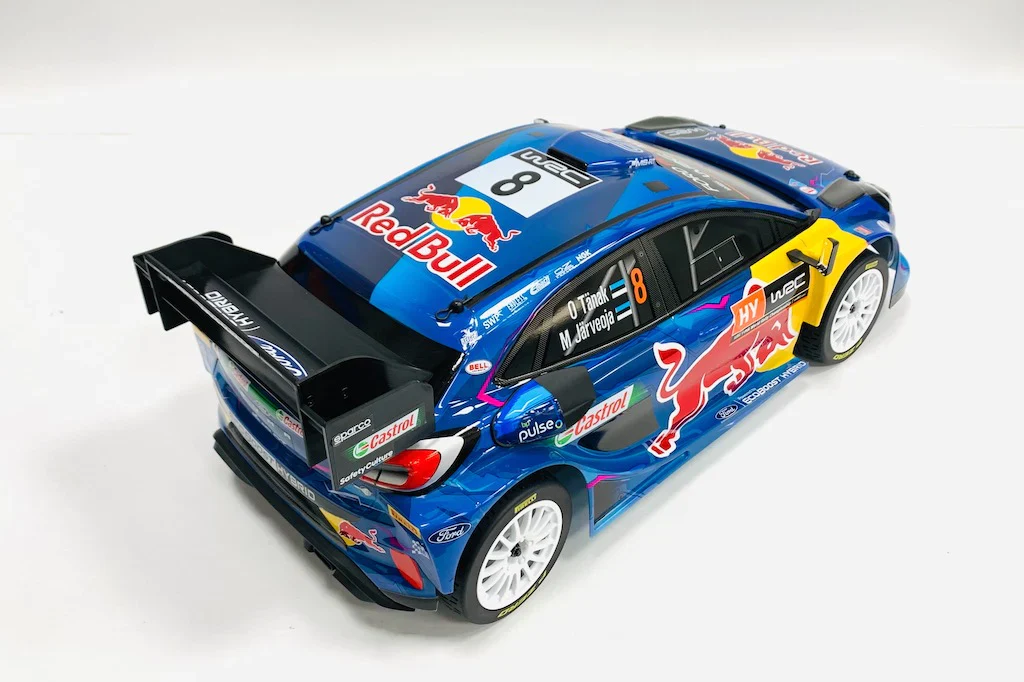

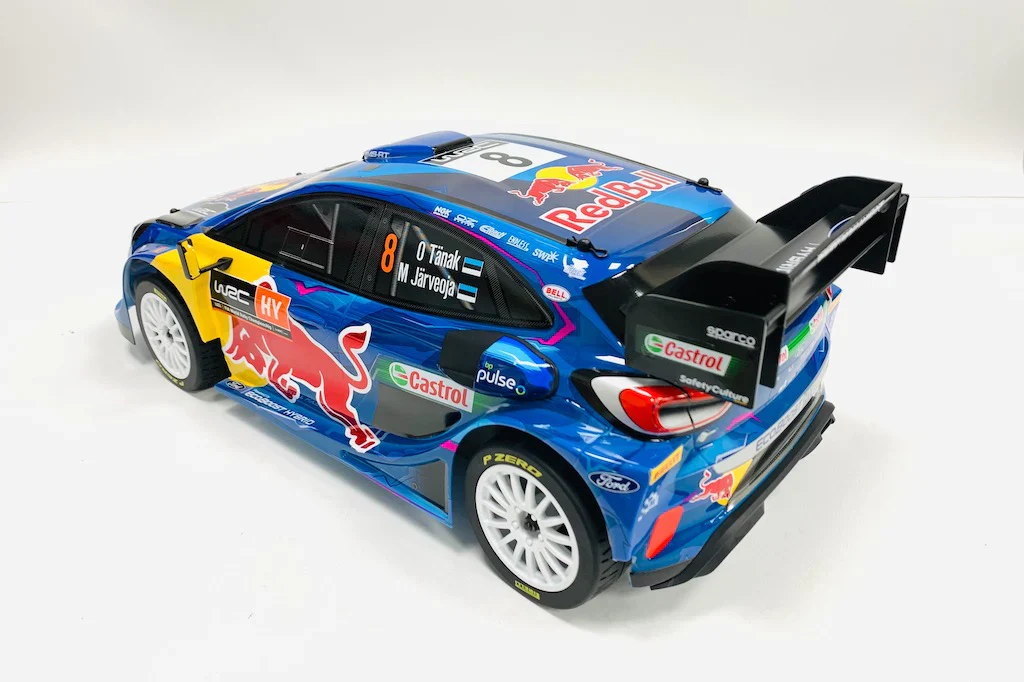

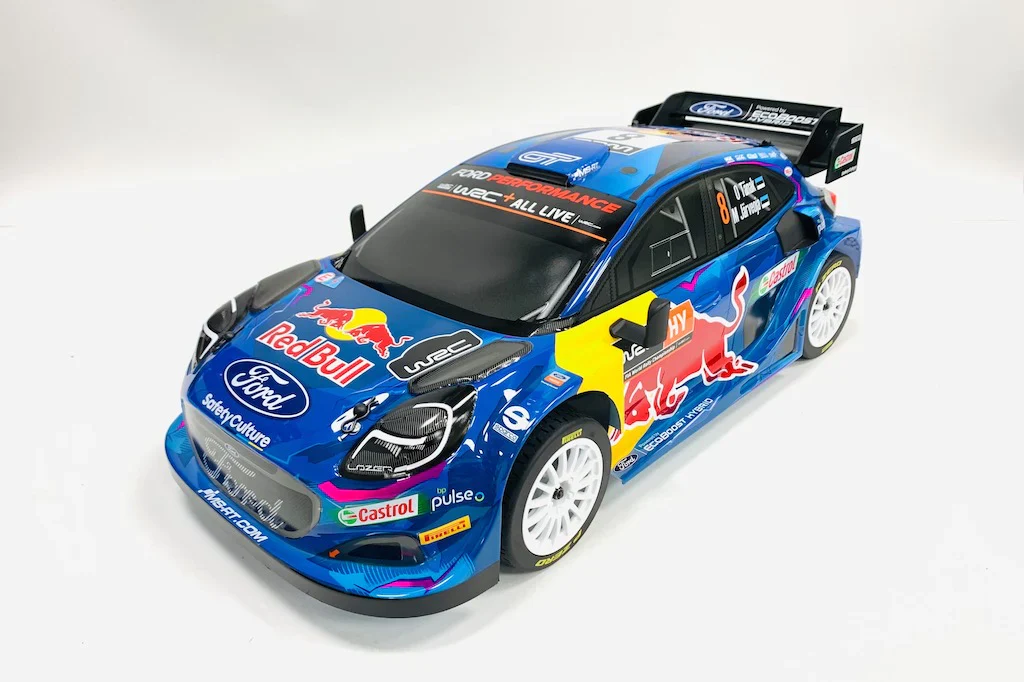

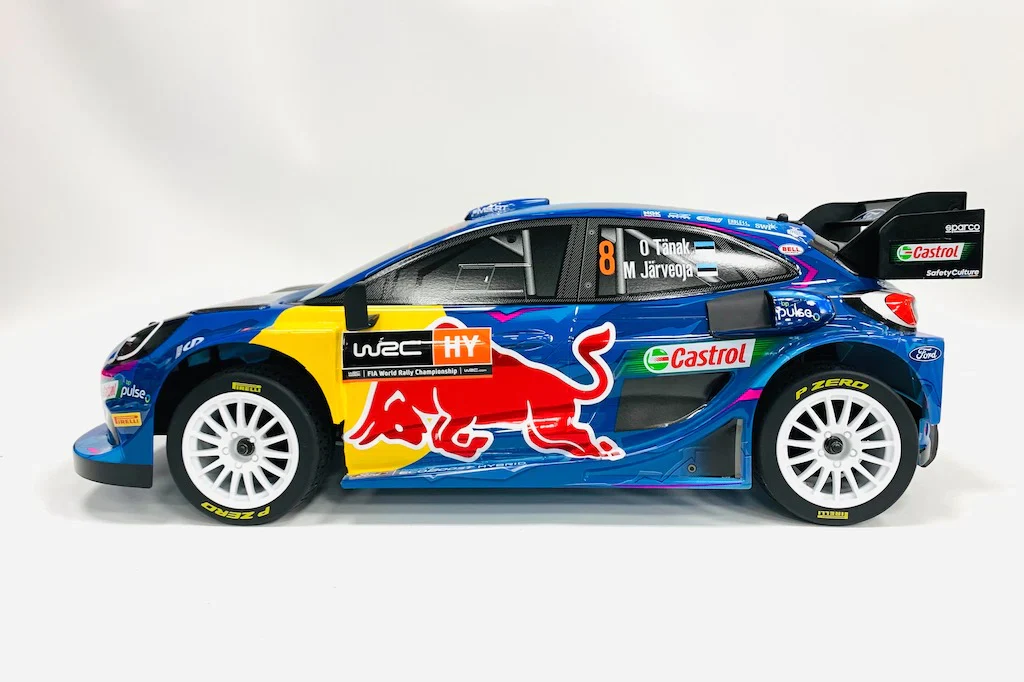

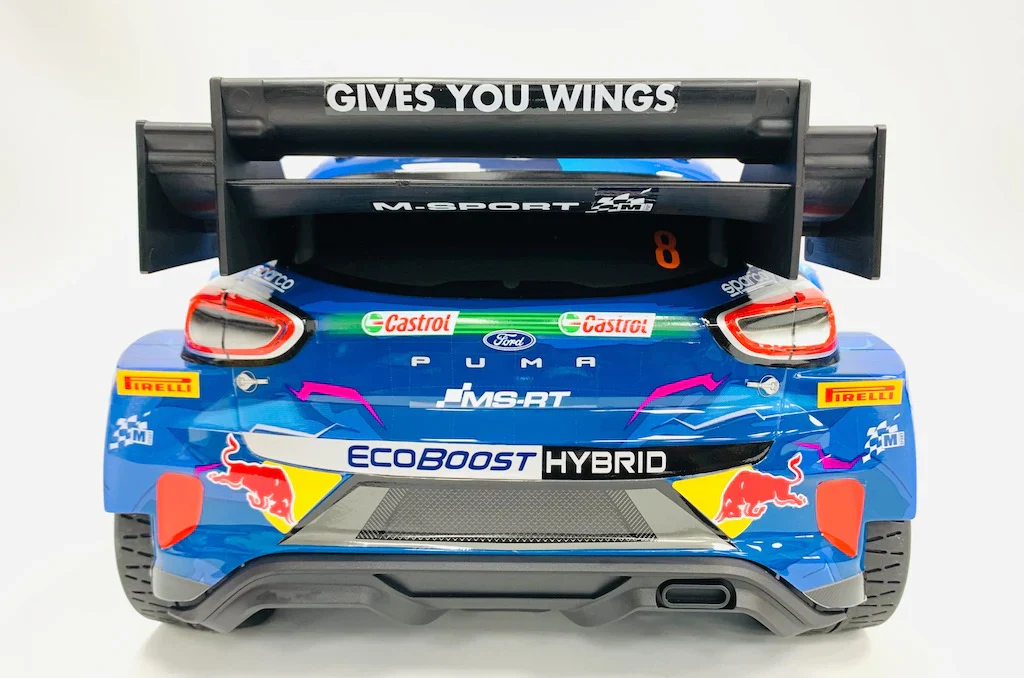

- Official Licensed 2023 M-Sport Ford Puma Rally 1 Edition

- Fully Detailed Injection-Molded Body Accessories Body Details

Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

Chassis:

- 3mm Aluminum Chassis

- Front and Rear 3mm Aluminum Shock Towers

- Aluminum Arm Brace

- Full Precision Ball Bearing Support

- Wider Body Mount Positions for Better Support

- Front Skid plate with Durable Foam Bumper

- Injection-Molded Rear Diffuser

- Easy Access Battery Tray

- Battery Tray Size 142mm x 48mm

 Suspension:

- Aerodynamic Lower Arm Suspension Design

- Big Bore Oil Filled Adjustable Coil Over Shocks

- 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft

- Racing Spring

- Adjustable Turnbuckles

- Adjustable Wheelbase +/- 6mm

Gear Ratio:

- Spur / Pinion 46/14T 3.29:1

- Ring & Pinion 40/17T 2.35:1

Drivetrain:

- Full Time 4-Wheels Drive

- Center Shaft Drivetrain for more power transferred to the wheels

- Metal Transmission Gears

- Aluminum Adjustable Motor Mount

- Oil Filled Two Differential Drive System

- Center Direct Drive

- Hight Efficient Transmission System

- 6 Gear Bevel Gear Type Differential

- Front / Rear Harden Steel Dog Bone and outdrives

Wheel: High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.

Tires:  High Performance Racing Rubber Compound Tires 56 x 80 x 35.50 mm.

Specs:

Chassis Length:  18.11 inches (460mm)

Chassis Width:   9.06 inches (230mm)

Wheelbase:  11.80 inches (300mm)

Ground Clearance:      0.98 inches (25mm)

Weight:      5.51 lb. 2.5kg
