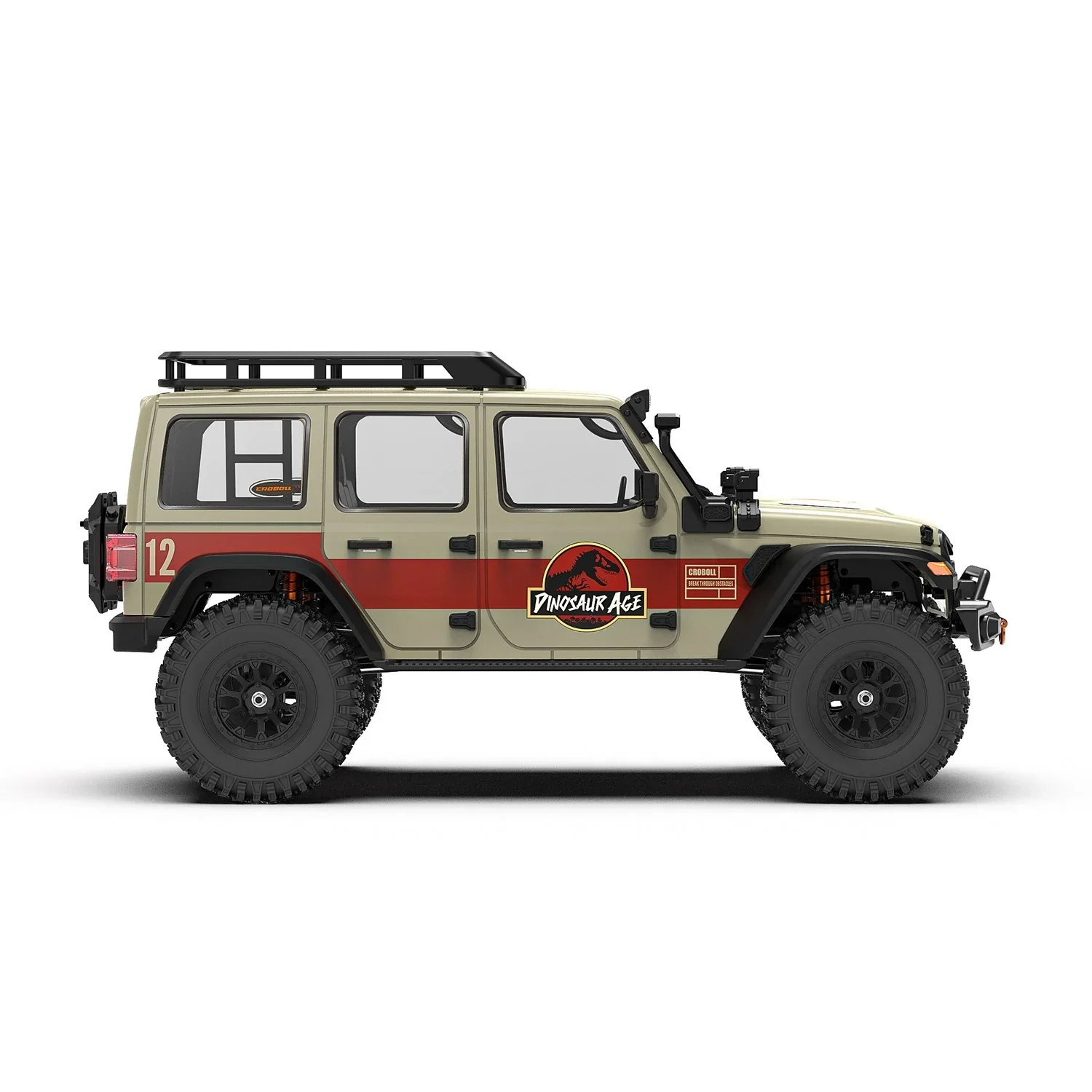

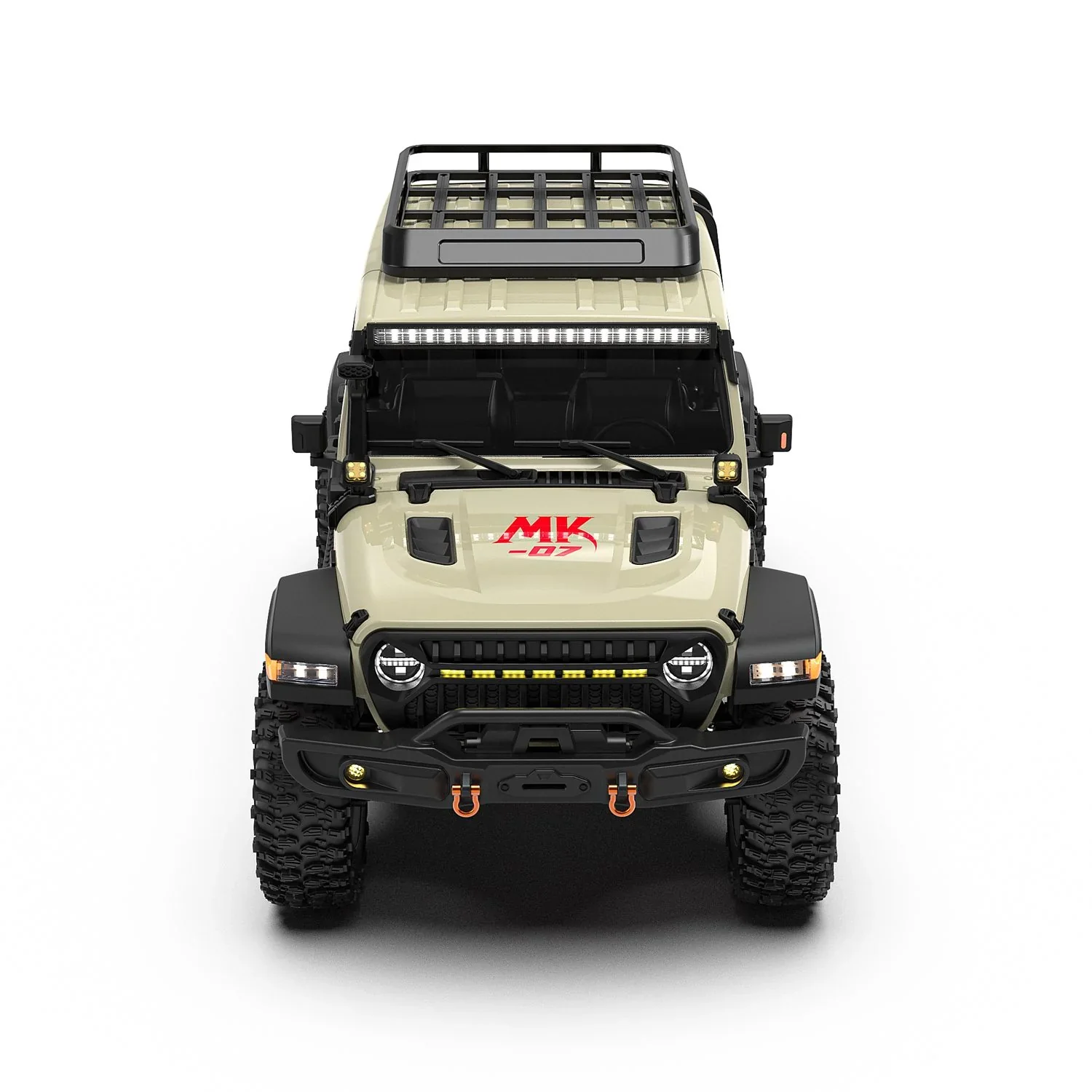

Rlaarlo 1/7 Scale 4WD Brushed RTR RC Crawler MK-07 V2 Hand-Painted
- This version is painstakingly painted by specialized craftsmen, who hand-apply the decorative parts and are committed to achieving the best possible visual effect in every detail. Their delicate use of pigments and the precision with which they apply the decorative parts make the overall appearance even more striking and add to the vehicle's unique charm
- MK-07 is a top-of-the-line model for off-road enthusiasts, offering an authentic and exciting off-road experience that brings unrivaled fun to off-road enthusiasts
- Designed with the challenge of complex road conditions in mind, it features front and rear axles made of high-strength nylon and high-carbon steel alloy driveshafts, as well as a high suspension system to ensure stability and passing performance
- The drivetrain with chrome steel gear set and thrust bar design enables it to cope with any complex environment and fearless climbing challenges
Note:
- Battery and Charger Sold Separately
-
The battery plug of MK-07 is XT60 connector, customers need to buy batteries by themselves
FRONT AND REAR DIFFERENTIAL DESIGN
PORTAL AXLE DESIGN
STUNNING SCALE DETAIL
FORWARD LOCATED GEARBOX
MULTIPLE SERVOS TO MATCH
CNC 6mm Aluminum Alloy Chassis Rails
Treated with a high-gloss coating not only enhance the ruggedness of the car but also add to the overall aesthetics of the vehicle.
3 Link Panhard Steering Link System
Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight.
Aluminum Scale Shocks
Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces.
Molded Inner Fenders
High-strength integrated nylon mudguard and inner fenders include locations to install rock lights by the user easily.
Battery Tray
MK-07's main battery tray holds a full-length 5000mAh 3-cell LiPo for extended runtime. Bundled battery straps to accommodate batteries of different heights.
High Steering and Drag Links
The steering linkage and traction linkage are mounted high on the door axle, elevating them to prevent possible damage. This allows the MK-07 to attack obstacles head-on, thus reducing the risk of the steering linkage hitting rocks.
8MM Stainless Steel Suspension Rods
The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust.
Twin Friction Plate Slipper Clutch
A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor.
Sealed Ball Bearings
The whole vehicle uses rubber-sealed dustproof high-speed bearings which reduce penetration from mud and sand and allow for a more fluid operation.
Approach and Exit Angle Of The Vehicle
The MK-07 features a 58° out-of-the-box approach angle for climbing walls and hills. 54° rear approach angle provides extreme performance even in the deepest ruts.
High Ground Clearance
The MK-07 has a center ground clearance of up to 90mm, which brings a more realistic off-road experience without fear of any complicated environment.
45° Steering Angle
The MK-07 has a self-adjusting steering angle of up to 45°, which makes it easy to maneuver around even the tightest corners.
Driveshafts and Suspension Links
The MK-07 portal axle design raises the driveshaft to improve axle geometry and reduce driveshaft angles.Higher driveshafts and suspension links go over obstacles, reducing wear and smoothing the ride over bumpy roads.
Front Motor Design
The motor front mount design moves the weight bias forward, allowing you to climb obstacles with better traction.
Simulation Design
Its body-mounted door handles, mirrors, fenders, and simulated windshield wipers work together to create an extremely realistic appearance.
Extensive Lighting Systems
Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights.
Simulated Bumper
The simulated design bumper fitted to the front vehicle is robust and functional, complete with tow hooks, metal grain and other details to give it a more realistic appearance.
Simulation Design Big Tire
MK-07 tire diameter of 145mm, tire width of 58mm to bring model players more realistic off-road experience, with the ability to challenge the complex road conditions.
Integrated Mirrors and Wiper Blades
The unique windshield and integrated mirrors and wiper blades have been rebuilt as injection-molded parts to provide a more realistic visual experience when mounted on the car.
Reinforced Metal Tail-Plate
Extra durability for body flipping. Prevents shell cracking.
5280 High-Power Brushed Motor
Supports up to 3S Lipo Battery (3 Cell)
Neodymium Iron Boron Strong Magnetic Magnet
High Torque 5280 brushed Motor
Capable of pulling a 1-2 tonne vehicle across a horizontal surface.
140A Brushed ESC
140A Continuous output
Ultra-low-speed linear control
40KG Waterproof Steering-Servo
40KG high-torque waterproof steering servo provides strong power output and reliable waterproof performance, ensuring stability and durability in a variety of extreme conditions.
10-Channel Radio System
Rlaarlo 10-channel remote control, integrated high and low speed, light control and other functions, simple and intuitive control, through the remote control of a key switch, no need to manually adjust, convenient and fast.
Product Specifications
- Scale:1/7 Scale
- Length:700 mm
- Width:325mm
- Height:340mm
- Wheelbase:439 mm
- Weight:7 kg
- Top Speed:6-12km/h
- Car body:1.5mmPC
- Range:350 m
- Transmitter :
Brushless —2.4GHz 10-Channel Transmitter
Brushed —2.4GHz 10-Channel Transmitter - Battery Size:164*49mm
- Light System:Full car linkage lighting
- Drivetrain:4WD
- Spur Gear:Metal
- Drive System:Four-Wheel Drive with Differential Lock
- Differential Type: Steel
- ESC:
Brushless —140A Independent Brushless ESC（Support app parameter tuning）
Brushed —140A Brushed ESC - Input Voltage: 2-4S Li-ion
- Motor Type:
Brushless —4282-2600KV Brushless Motor
Brushed —Brush Motor5280 12500 revolutions per minute - Motor Gear Type: Steel
- Steering Servo Machine: 40kg Servo （Waterproof）
- Servo Pinion Type: Metal
- Shock Type:Adjustable Metal Oil-Filled Shock Absorber
- Chassis:6mm Thick High-Strength CNC Beam
Note: Some parameters may differ between versions.
